DS_Simp

Available Benchmarks

DS_Simp
Ringach-Shapley-Hawken 2002

Benchmark Results

Population Statistic	Bandwidth	Circular Variance
Kolmogorov-Smirnov Test Statistic	0.7828	0.7341
Median	180.00 deg	0.95
Standard Deviation	58.76	0.13

Details of Simulations

Populations Benchmarked: EX, EX_D, IN, IN_D and DS
Number of Cells: 292
Model Parameter File: DS_Simp.moo
Response File: Simp_Tuning.rsp

References

Baker PM, Bair W (2012) Inter-Neuronal Correlation Distinguishes Mechanisms of Direction Selectivity in Cortical Circuit Models. J Neurosci 32:8800--8816.

Ringach DL, Shapley RM and Hawken MJ (2002) Orientation Selectivity in Macaque V1: Diversity and Laminar Dependence. J Neurosci 22: 5639--5651.

Click on the figures to switch between the raw population histograms of the BW and CV values and the Empirical Distribution Functions used to calculate the Kolmogorov-Smirnov test statistic.

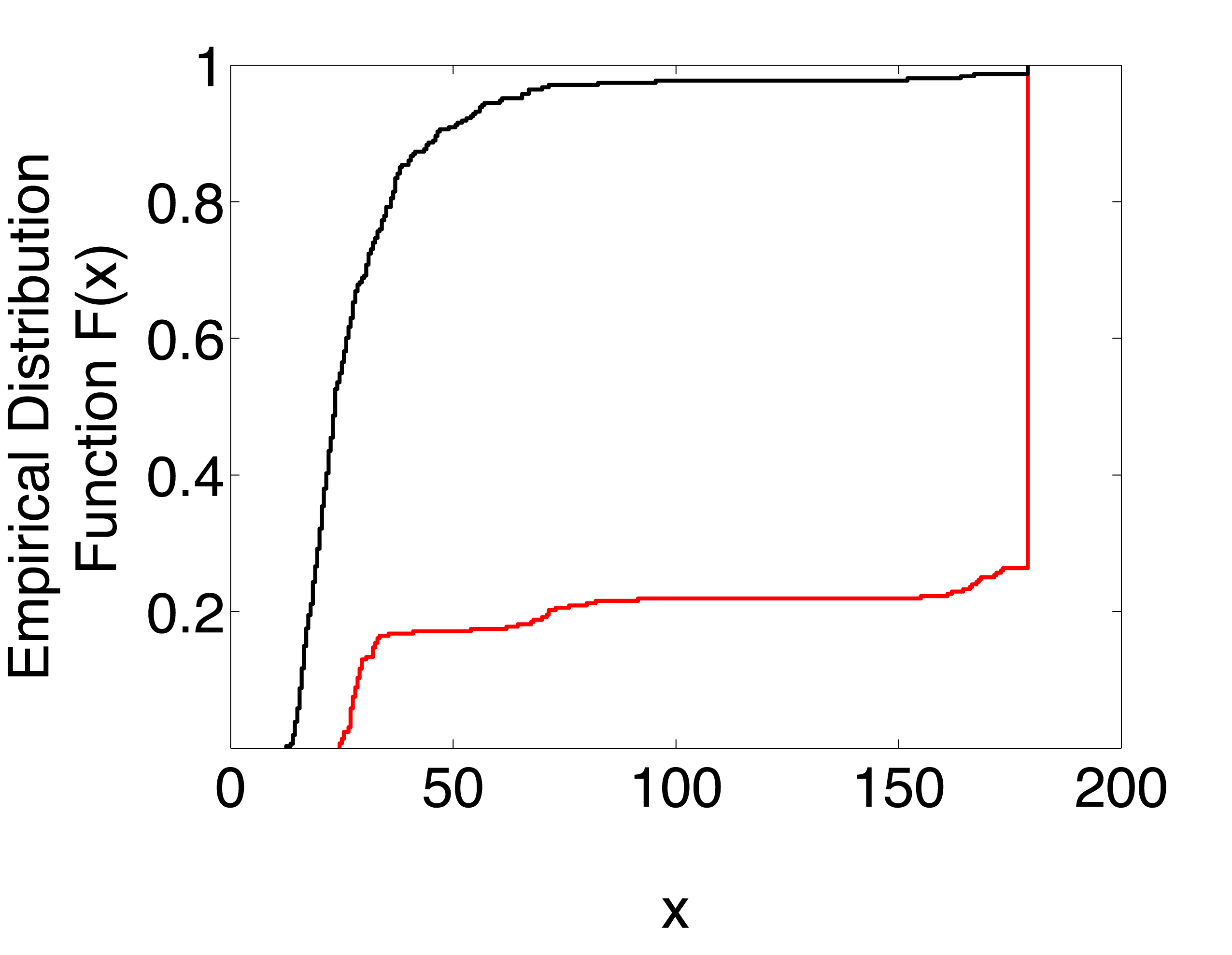

Bandwidth

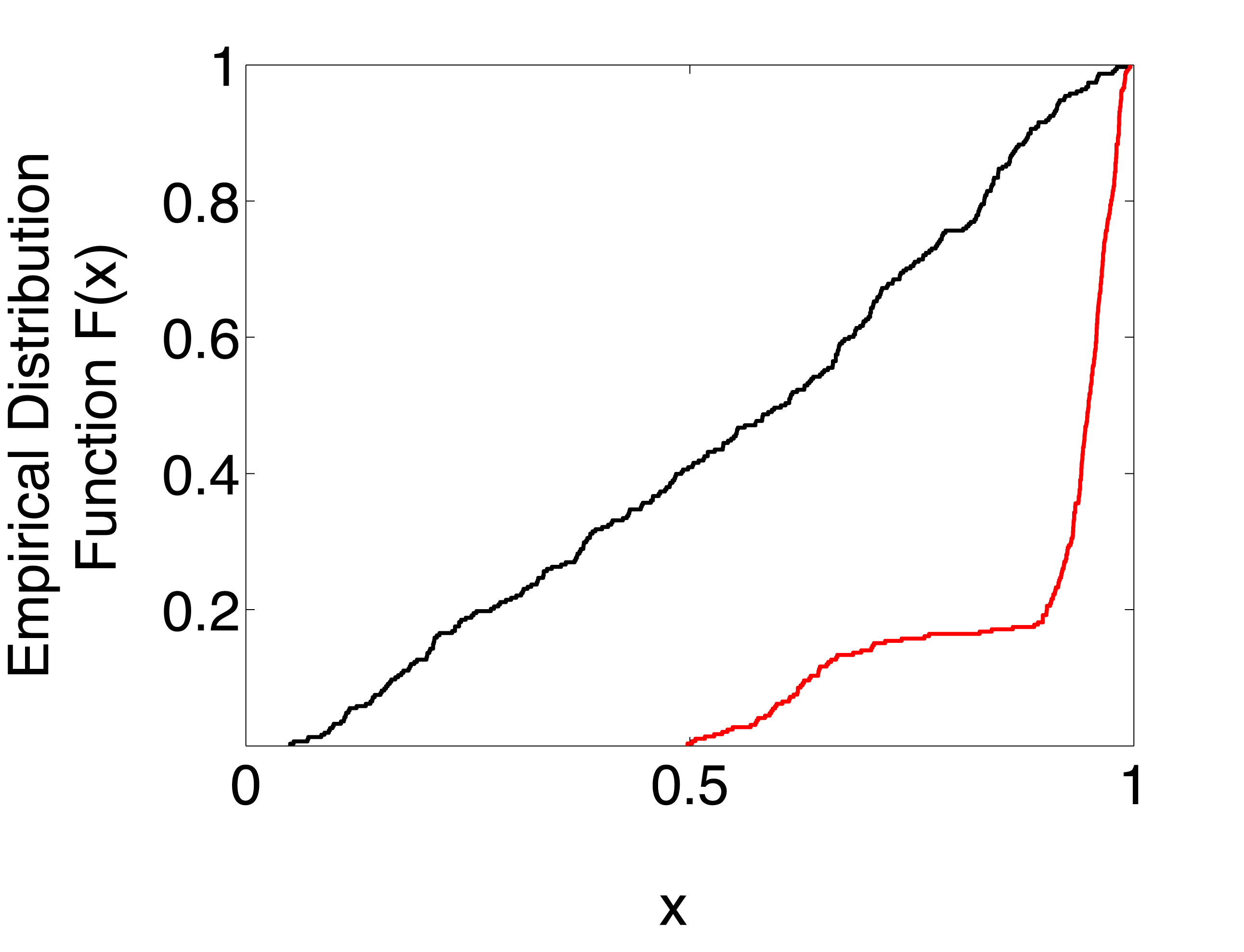

Circular Variance
