DS_Post_Fac
Ringach-Shapley-Hawken 2002

Benchmark Results

Population Statistic	Bandwidth	Circular Variance
Kolmogorov-Smirnov Test Statistic	0.4053	0.3761
Median	20.00 deg	0.71
Standard Deviation	12.56	0.22

Details of Simulations

Populations Benchmarked: EX, IN and DS
Number of Cells: 306
Model Parameter File: DS_Post_Fac.moo
Response File: PostFac_Tuning.rsp

References

Baker PM, Bair W (2012) Inter-Neuronal Correlation Distinguishes Mechanisms of Direction Selectivity in Cortical Circuit Models. J Neurosci 32:8800--8816.

Ringach DL, Shapley RM and Hawken MJ (2002) Orientation Selectivity in Macaque V1: Diversity and Laminar Dependence. J Neurosci 22: 5639--5651.

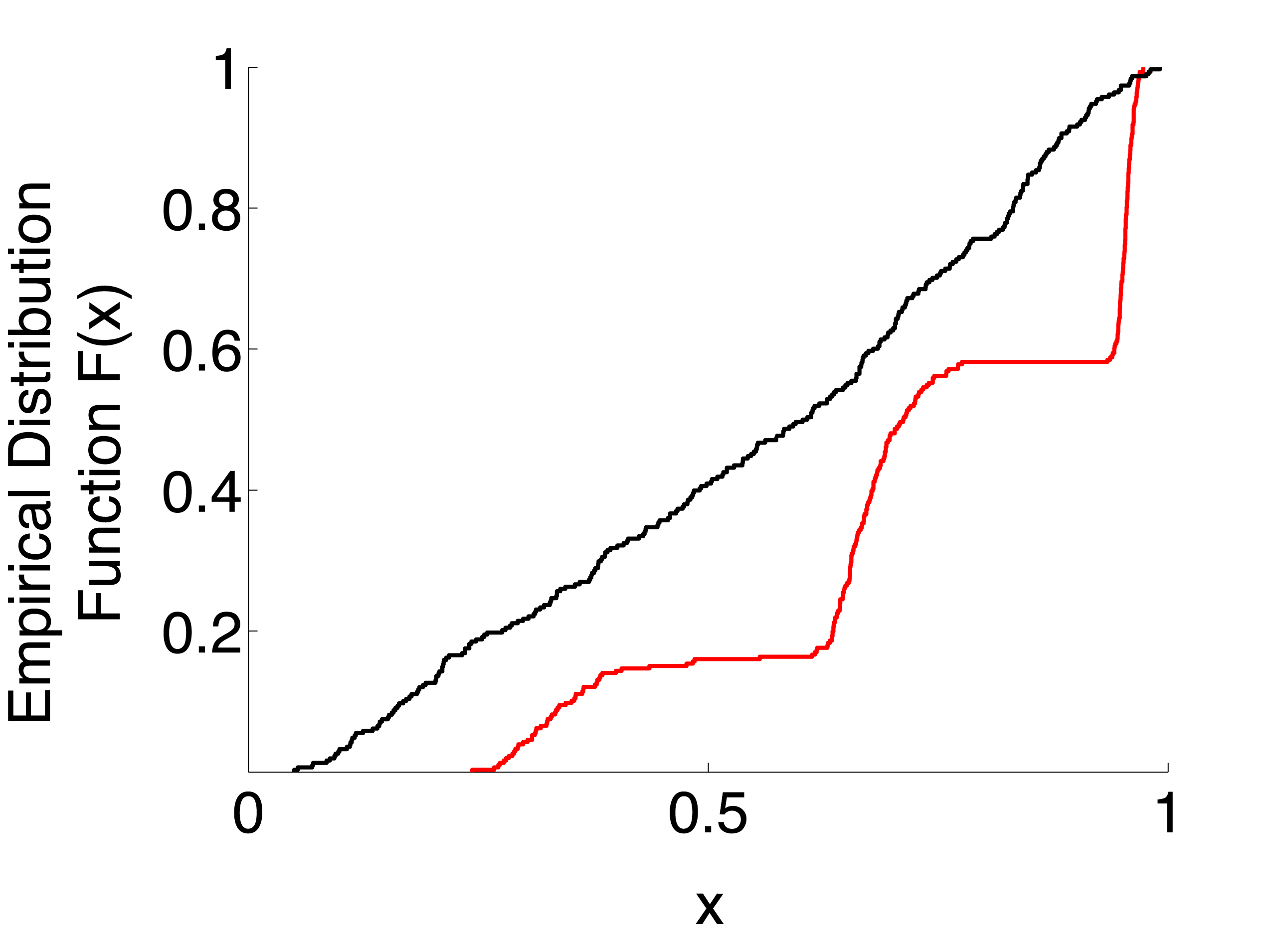

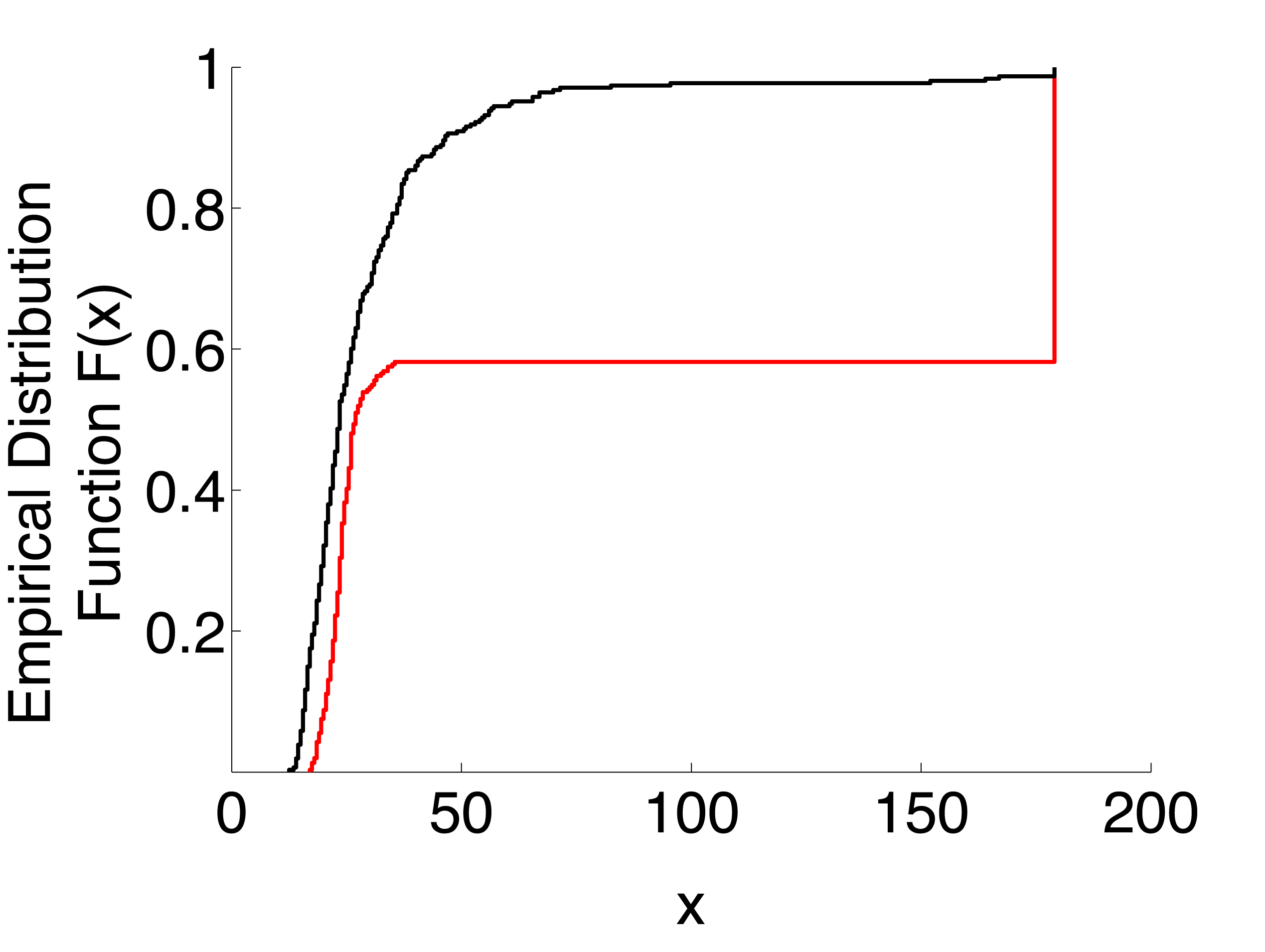

Click on the figures to switch between the raw population histograms of the BW and CV values and the Empirical Distribution Functions used to calculate the Kolmogorov-Smirnov test statistic.

Bandwidth

Circular Variance
